Progress in in-situ observation of methane flux at sediment-water interface in cold seep
-

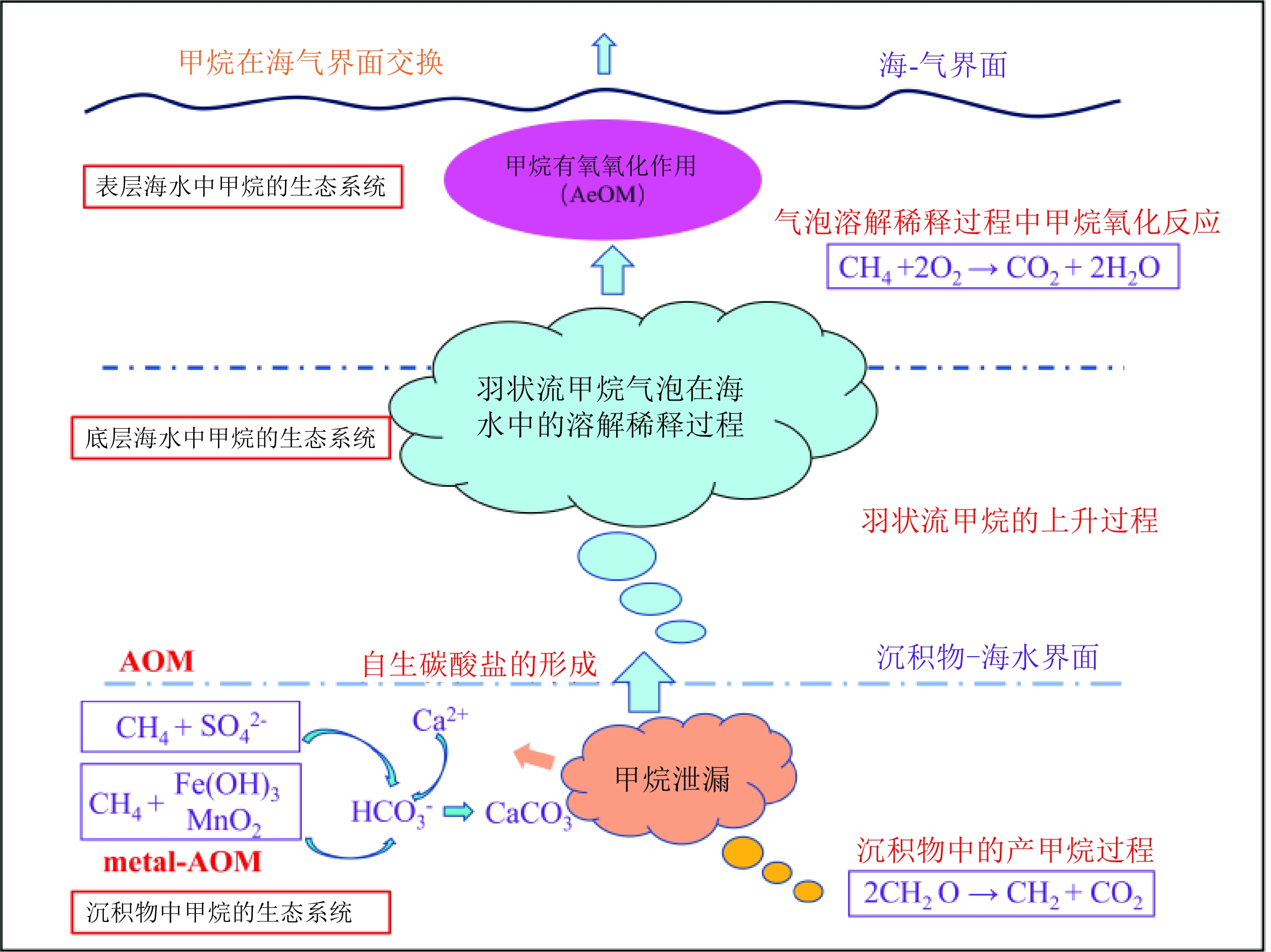

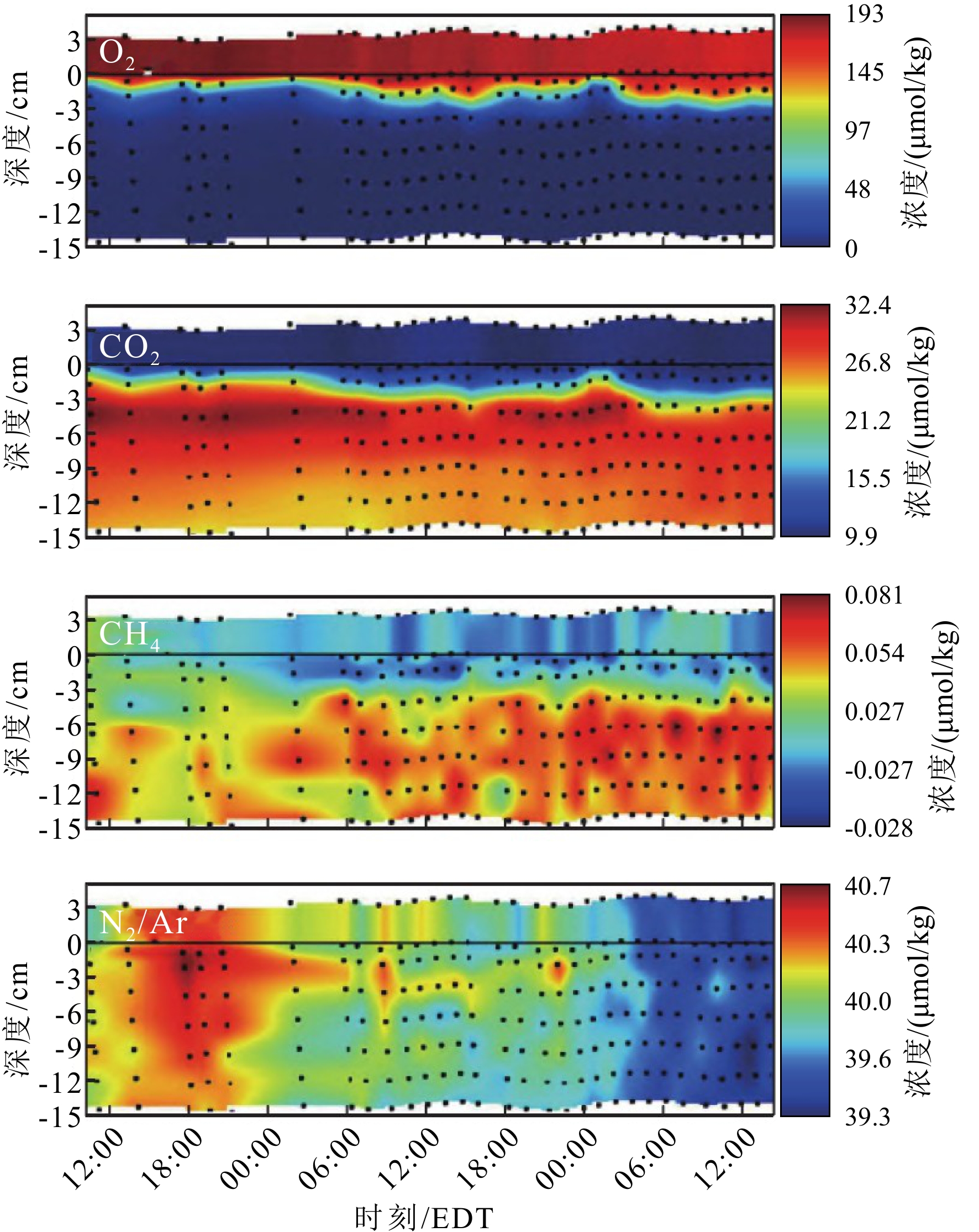

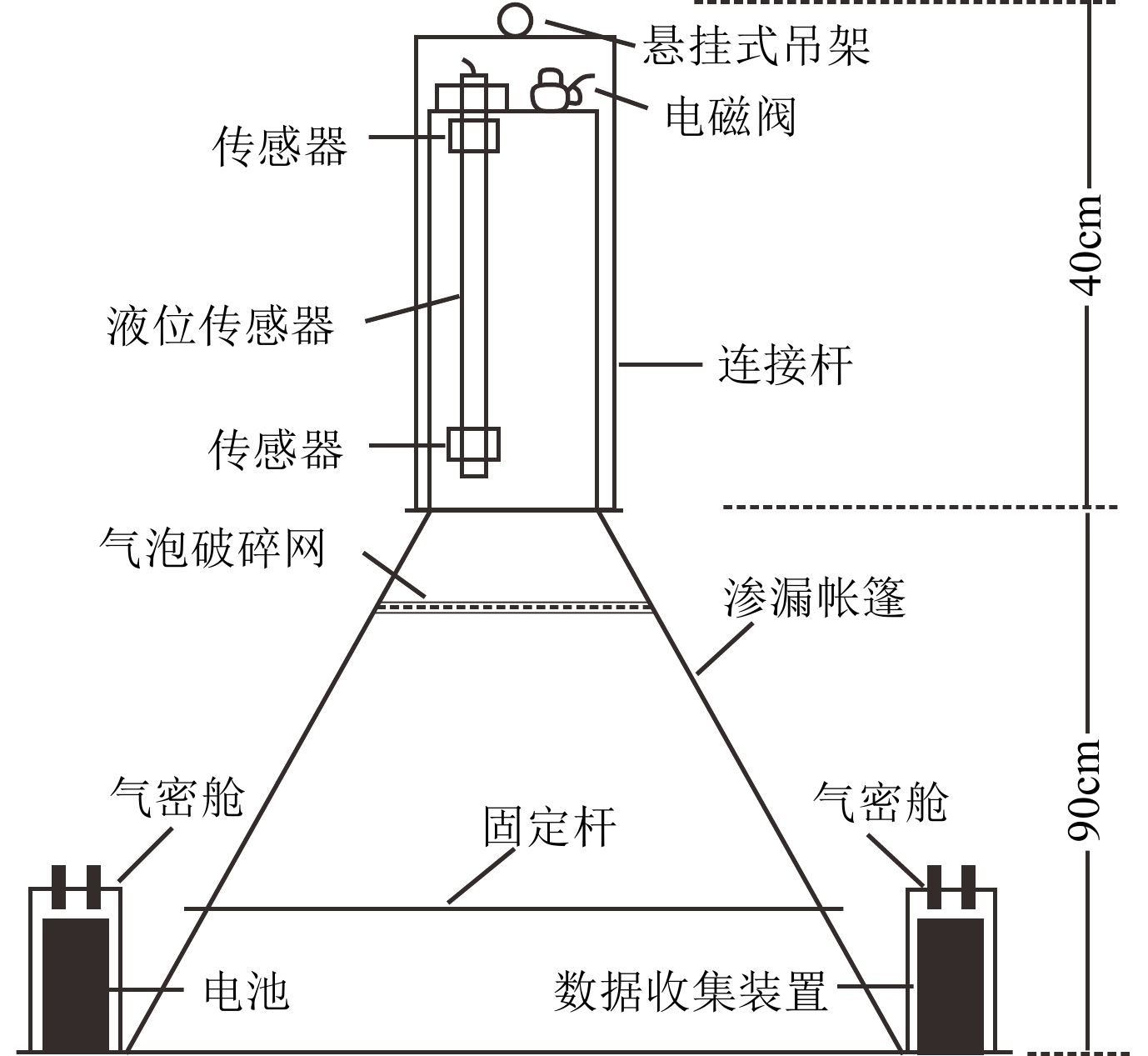

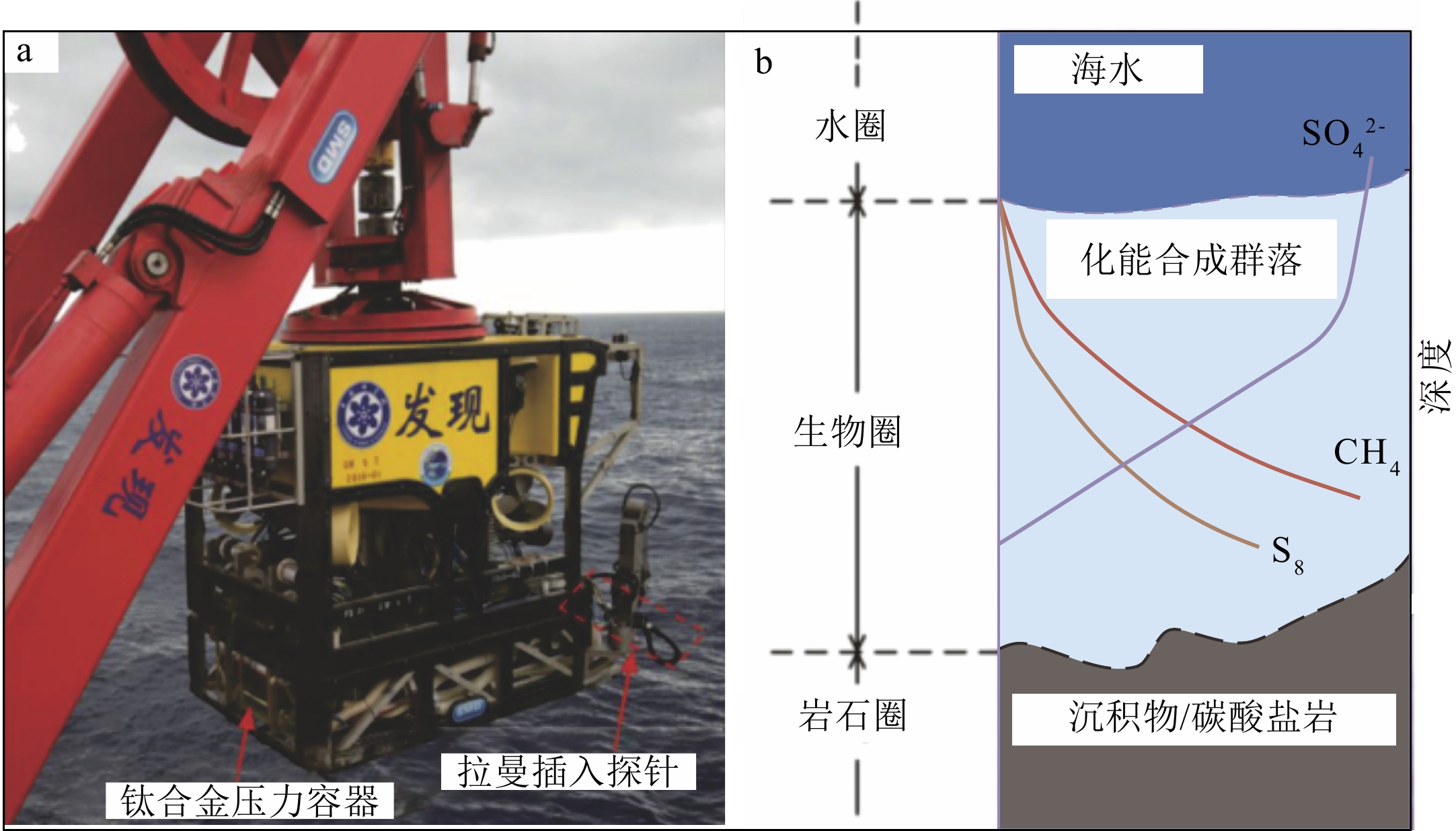

摘要: 海底沉积物-水界面作为冷泉跨圈层活动最关键的界面，近年来已成为冷泉区碳循环研究调查的重点目标。为准确获取海洋沉积物-水界面的流体通量，客观重建界面环境过程，评估环境效应，必须发展一整套精确、高效、科学的水下原位甲烷通量测量技术。综述了当前海洋冷泉区沉积物-水界面甲烷通量研究的意义与价值，详细介绍了多种较为成熟的海洋沉积物-水界面甲烷原位通量测试技术工作原理、使用方法和优缺点等，如测试游离气泡态甲烷通量的渗漏帐篷、声学反射、时序影像等技术方法，原位溶解态甲烷膜脱气技术的甲烷传感器、激光拉曼光谱测量方法等，同时对全球该领域已经调查的地区、研究现状和进展进行了详细的介绍。最后从技术层面对这一研究领域未来的发展方向和趋势进行展望，以期为未来国内海洋冷泉区沉积物-水界面甲烷通量原位观测研究提供思路与方向借鉴。Abstract: As the most critical interface, the seabed sediment-water interface has become the key target of carbon cycle research in cold seep in recent years. To obtain accurately the fluid flux at marine sediment-water interface, reconstruct objectively the interface environmental processes, and evaluate the environmental effects, a complete set of accurate, efficient, and scientific underwater in-situ measurement techniques of methane flux shall be developed. The significance and value of methane flux at sediment-water interface in cold seep are reviewed in the topics including working principle, methods, advantages and disadvantages of free bubble methane flux seep tent, acoustic reflection, timing imaging, in situ dissolved methane membrane methane sensor, and laser Raman spectral measurement methods. The investigated regions, research status, and progress in the field are presented. Finally, the future direction and trend of development in this field are expected in technical aspect, to provide a reference for the in situ observation of methane flux in marine cold seep.
-
Keywords:
- cold seep /
- sediment-water interface /
- methane flux /
- in-situ measurement /
- trend of development
-
-
![]()
![]()
![]()
![]()

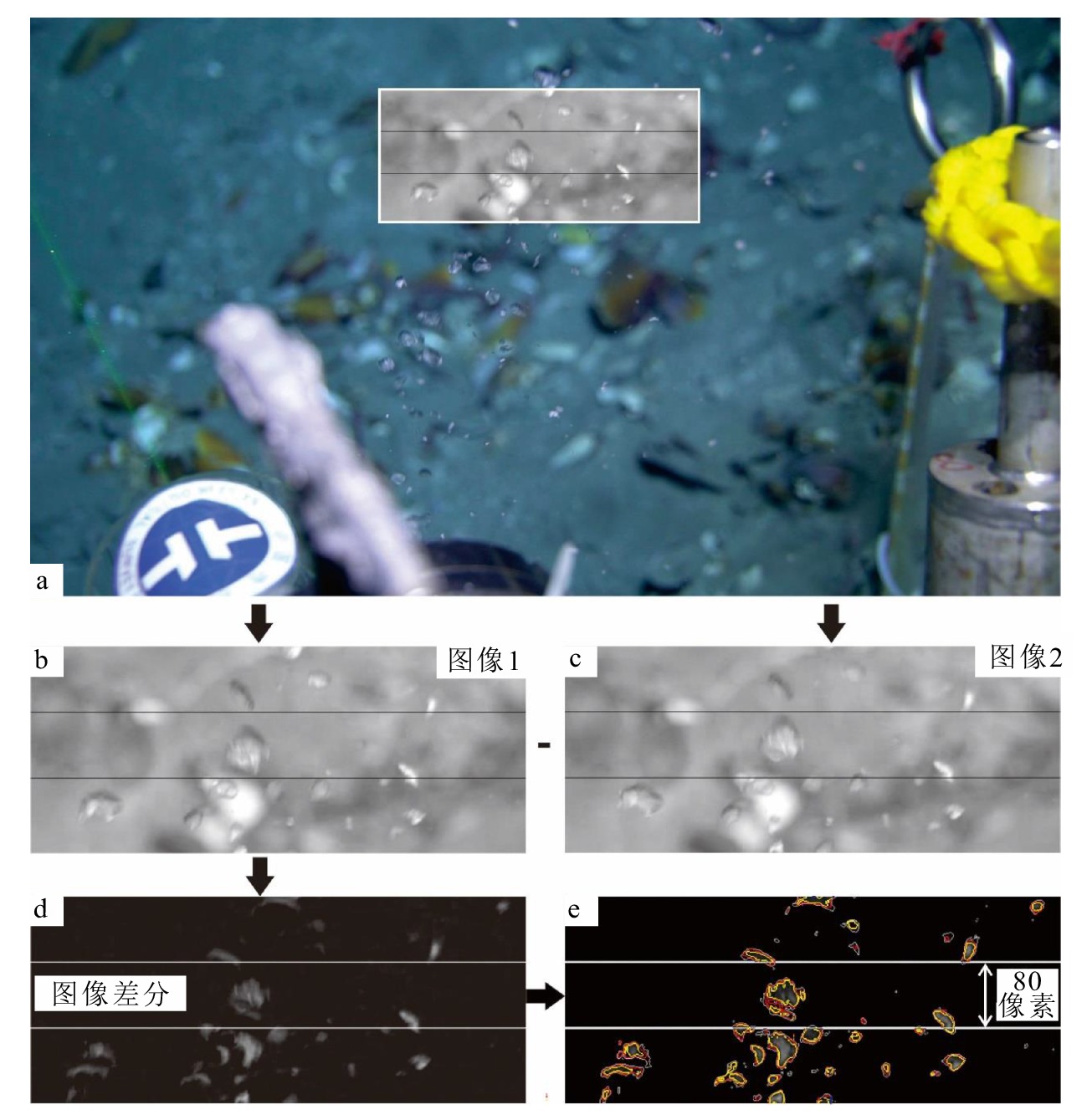

图 6 半自动气泡计数法处理流程示意图[57]
a: 从原始图像中选定气泡计数区域并转换灰度；b-c: 消除气泡计数区域的背景图像并将气泡转化为(d)中的亮斑；e: 对每一帧图像的每根像素线上的气泡数进行计数求和、取平均值。
Figure 6. Schematic diagram depicting the image‐processing method using semi-automatic bubble counting
a: Bubbles shown in the original image are cropped and counted and the image is converted to grayscale; b-c: the background image of bubble counting area is removed, and bubbles are converted into bright spots as shown in (d); e: the number of bubbles on each pixel line of each frame of image are counted, summed, and averaged.
![]()
![]()

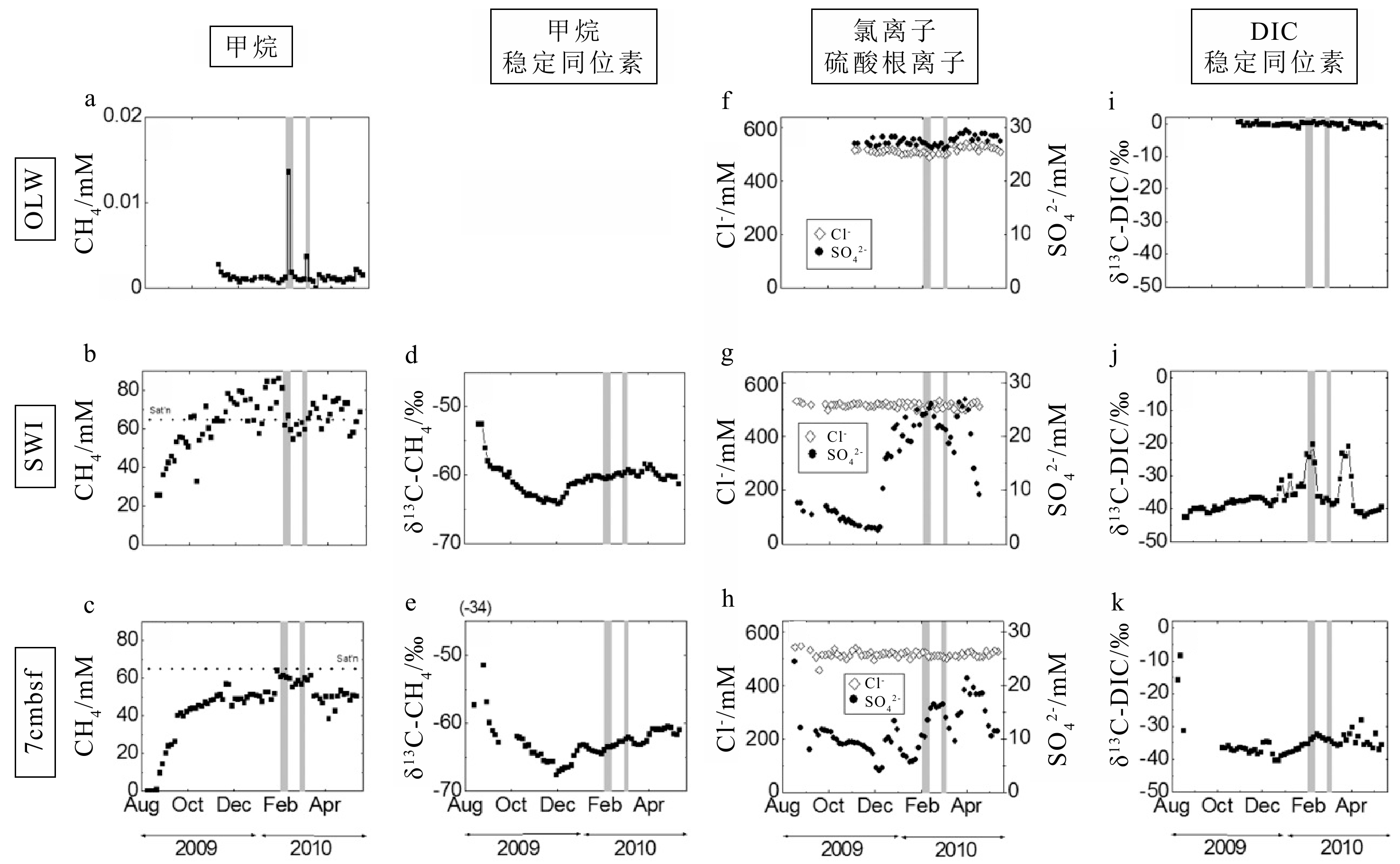

图 8 甲烷及其他化学参数随时间变化特征[64]
a-c: 甲烷浓度， d-e: 甲烷中稳定碳同位素，f-h: 氯离子浓度及硫酸根浓度，i-k: 溶解无机碳同位素；OLW为海底以上25 cm处，SWI为沉积物水界面处，7 cmbsf为海底以下7 cm处。
Figure 8. Characteristics of methane and other chemical parameters over time[64]
a-c: Methane concentrations; d-e; stable carbon isotopes of methane; f-h: chloride and sulfate concentrations; i-k: stable carbon isotopes of DIC (dissolved inorganic carbon). OLW: overlying water from 25 cm above seafloor. SWI: sediment-water interface. cmbsf: centimeter below seafloor

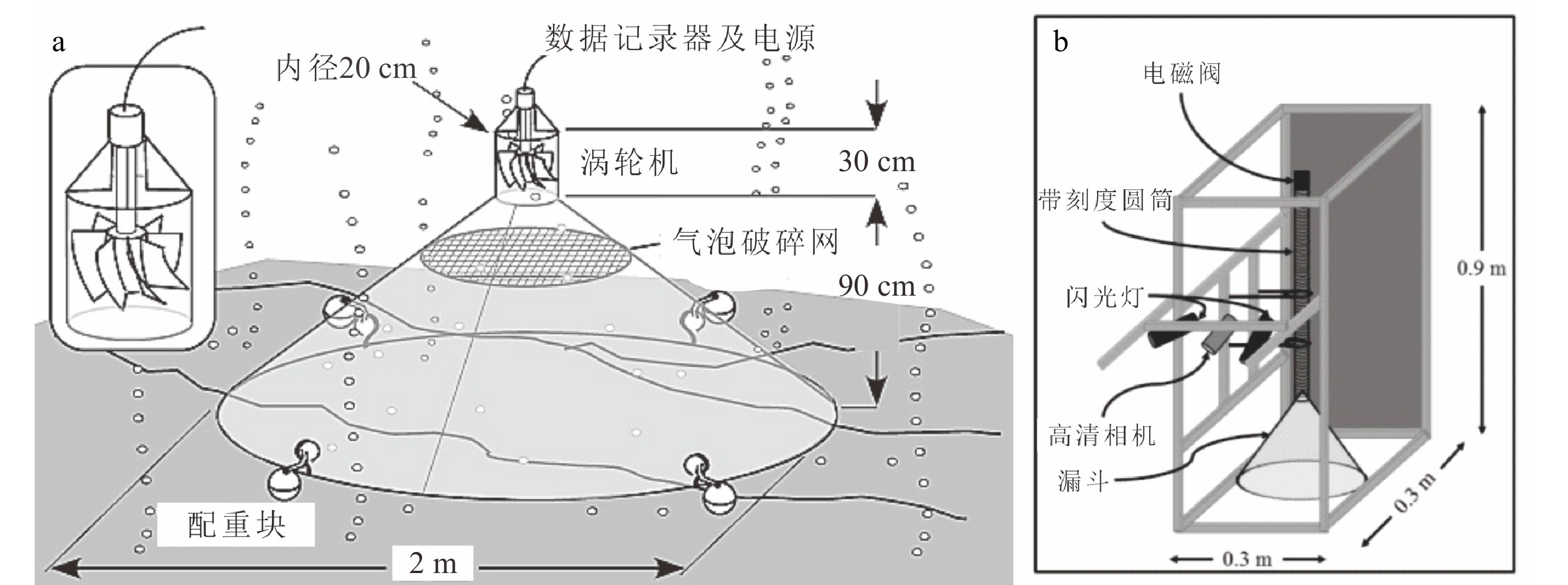

表 2 圣塔芭芭拉海峡COP重要渗漏点沉积物-水界面气体通量[53]
Table 2 Gas fluxes at water-sediment interface from SantaBarbara marine seeps[53]
渗漏点 调查区域
面积/km2渗漏活跃区
面积/km2Qmax
/(m−3·m−2·d−1)Qtotal
/(m−3·d−1)Platform Holly 0.367 0.034 0.75 1 490 Seep Tent 0.338 0.051 0.19 990 La Goleta 0.375 0.215 0.57 5 350 Patch 0.366 0.203 0.13 4 220 Trilogy 0.747 0.187 2.6 8 980
下载: 导出CSV
-
