Diagenetic facies analysis and sweet point reservoir prediction for the 3rd Member of Liushagang Formation in the Weixinan Sag
-
摘要: 根据岩心、铸体薄片、扫描电镜、阴极发光、X衍射等资料并结合物性资料，对北部湾盆地涠西南凹陷流三段储层的储层特征、成岩作用特点进行了研究。结果表明研究区压实作用强烈是储层致密化的主要原因。胶结作用对储层有一定的破坏作用，但是早期碳酸盐胶结、自生高岭石有利于优质储层的发育。溶蚀作用是优质储层发育的基础，破裂作用改善了储层的渗流能力。在成岩作用研究的基础上，根据成岩作用的强度及特殊成岩矿物，划分了五类成岩相。其中，弱压实弱胶结相物性最好，中等压实中等溶蚀相、强压实中强溶蚀相物性次之，压实充填相和碳酸盐致密胶结相物性最差。通过成岩相的测井响应分析，识别了单井-剖面-平面的成岩相。预测研究区东部辫状河三角洲浅埋藏储层、西北部扇三角洲和西南部扇三角洲的水下分流河道中厚层砂砾岩体储层为甜点发育区。Abstract: Data from cores, casting thin sections, scanning electron microscopy, cathodoluminescence and X-ray diffraction are applied to study the petrological characteristics and diagenesis of the reservoirs of the 3rd Member of the Liushagang Formation in the Weixinan Sag of Beibu Gulf Basin. Special attention is paid to diagenesis and its evolutionary stages. It is found that strong compaction is the main reason for density and tightness increase of the sediments. Cementation seems to have certain negative impact to reservoir properties, but the early carbonate cementation and authigenic kaolinite always have close connections with high-quality reservoirs. Dissolution is a basic process for enhancement of reservoir qualities, and fractures may improve the permeability of reservoir rocks. According to the intensity of diagenesis and the composition of diagenetic minerals, five types of diagenetic facies are qualitatively recognized. Among them, the diagenetic facies of weak compaction and weak cementation are the best for hydrocarbon accumulation, followed by the medium compaction and medium dissolution facies, and the strong compaction and medium to strong dissolution facies. The compaction and filling facies and the densely carbonate cemented facies are listed the worst in quality. Five types of logging curves are selected to define and describe the diagenetic facies. With the spatial distribution of diagenetic facies, it is recognized that the shallow buried deltaic reservoirs in the east of the study area, and the thick conglomerate reservoir of underwater distributary channel facies in northwest and southwest fan deltas are the sweet points of reservoirs in the study area.
-
-
![]()
图 1 涠西南凹陷流三段砂岩类型三角图
Ⅰ-石英砂岩，Ⅱ-长石石英砂岩，Ⅲ-岩屑石英砂岩，Ⅳ-长石砂岩，Ⅴ-岩屑长石砂岩，Ⅵ-长石岩屑砂岩，Ⅶ-岩屑砂岩。
Figure 1. The Q-F-R diagram of the sandstone in Weixinan Sag
Ⅰ-Quartz arenite，Ⅱ-Subarkose，Ⅲ-Sublitharenite，Ⅳ-Arkose，Ⅴ-Lithic arkose，Ⅵ-Feldspathic litharenite，Ⅶ-Litharenite.
![]()
图 2 研究区流三段储层孔隙类型
A. 原生粒间孔和粒间溶孔 （WZB-3-3井，2 172.1 m，单偏光）；B. 铸模孔和粒内溶孔 （WZC-2-3井，3 229.53 m，单偏光）；C. 石英发育微裂缝 （WZC-4N-1井，2 114 m，单偏光）；D. 高岭石晶间孔 （WZC-7-1井，2 506.64 m，扫描电镜）；E. 伊利石晶间孔 （WZC-2-3井，3 225.82 m，扫描电镜）；F. 伊蒙混层晶间孔 （WZC-2-3井，3 232.85 m，扫描电镜。
Figure 2. The pore types of the reservoirs in study area
![]()
图 3 涠西南凹陷流三段储层压汞曲线类型
Figure 3. The mercury injection curve types of the reservoirs in the study area
![]()
图 4 涠西南凹陷流三段储层物性分布直方图
Figure 4. The physical property distribution of the reservoirs in the study area
![]()
图 5 涠西南凹陷流三段储层成岩作用类型
Mc-云母，Cc-方解石，K-高岭石，Q-石英。A. 压实作用将云母颗粒压弯，颗粒定向排列 （WZC-2-2井，3 151.28 m，正交光）；B. 早期方解石胶结，多呈连晶基底式产出 （WSA-5-2井，1 235.69 m，单偏光）；C. 铁方解石交代长石 （WZB-3W-1井，2 061.24 m，单偏光）；D. 早期高岭石边缘呈锯齿状，晶间孔发育，晶体受后期压实变形 （WSA-6-2井，1 048 m，扫描电镜）；E. 晚期高岭石晶体边缘平直，晶间孔发育，晶体没变形 （WZD-11-4井，2 272.98 m，扫描电镜）；F. 丝缕状伊利石 （WZC-8-2井，3 001.4 m，扫描电镜）；G. 粒表大量针叶状绿泥石、片丝状伊利石、自生石英晶体 （WZC-2-2井，3 156.19 m，扫描电镜）；H. 自生石英与高岭石伴生 （WZE-3-2井，3 407.8 m，扫描电镜）；I. 发育石英微裂缝 （WZC-4N-1井，2 114 m，单偏光）。
Figure 5. The types of diagenesis of the reservoirs in the study area
![]()
图 7 碳酸盐胶结物含量对物性的影响
Figure 7. The influence of carbonate cement content on physical property of reservoirs
![]()
图 8 黏土矿物含量与储层孔隙度的关系
Figure 8. The relationship between clay content and reservoir porosity
![]()
图 9 涠西南凹陷流三段储层压实率、胶结率和视溶蚀率分布图
Figure 9. The distribution of compacted rate，cementation rate and dissolution rate of the reservoirs in the study area
![]()
图 12 单井成岩相图
Figure 12. Vertical distribution of diagenetic facies of WZB-3-1 and WZB-3-3
![]()
图 14 涠西南凹陷流三段上下层序成岩相平面图
FD. 扇三角洲，BD. 辫状河三角洲，SLF. 湖底扇，DL. 半深-深湖，SL. 滨浅湖，AP. 冲积平原。
Figure 14. The spatial distribution of diagenetic facies in the study area
表 1 成岩相划分依据
Table 1 The classification of diagenetic facies of the reservoirs

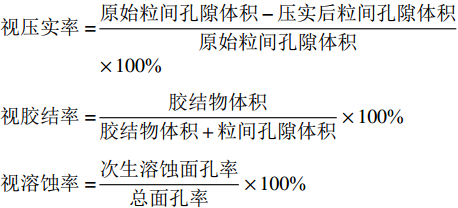

成岩相 视压实率/% 视胶结率/% 视溶蚀率/% 弱压实、弱胶结相 ＜30 ＜30 ＜30 中等压实中等溶蚀相 30～70 ＜30 30～60 强压实中-强溶蚀相 ＞70 30～70 ＞60 压实-充填相 ＞70 30～70 ＜30 致密碳酸盐胶结相 ＞30 ＞90 ＜30
下载: 导出CSV
表 2 各类成岩相的测井值范围
Table 2 The Logging ranges for different diagenetic facies
成岩相类型 范围及均值 GR/API AC/（μs/ft） CNCF/% DEN/（g/cm3） RILD/Ω·m 弱压实弱胶结相 范围 60～120 90～110 0.25～0.3 2.2～2.4 12～15 均值 98 92 0.26 2.3 13 中等压实中等溶蚀相 范围 40～80 80～95 0.18～0.3 2.1～2.4 0～15 均值 77 86 0.23 2.3 7 强压实中-强溶蚀相 范围 50～120 70～90 0.08～0.15 2.3～2.6 10～15 均值 94 75 0.14 2.4 12 压实-充填相 范围 130～180 80～90 0.1～0.3 2.4～2.6 8～12 均值 163 88 0.23 2.5 9 碳酸盐致密胶结相 范围 110～180 70～85 0.25～0.35 2.4～2.6 12～20 均值 147 77 0.29 2.5 16
下载: 导出CSV
-
[1] 陈彦华, 刘莺. 成岩相-储集体预测的新途径[J]. 石油实验地质, 1994, 16(3):274-280. [CHEN Yanhua, LIU Ying. Diagenetic facies──a new approach to the prediction of reservoir rocks [J]. Experimental Petroleum Geology, 1994, 16(3): 274-280. doi: 10.11781/sysydz199403274 [2] 裘亦楠, 薛叔浩, 应凤祥. 中国陆相油气储集层[M]. 北京: 石油工业出版社, 1997. QIU Yinan, XUE Shuhao, YING Fengxiang. China continental oil and gas reservoir[M]. Beijing: Petroleum Industry Press, 1997.
[3] 覃建雄, 田景春, 杨作升. 陕甘宁盆地中部马五 $ \frac{1}{4}$ 气层成岩相与有利储集区预测[J]. 中国海上油气(地质), 2000, 14(1):38-41. [QIN Jianxiong, TIAN Jingchun, YANG Zuosheng. The study of diagenetic phases and prediction of prospective reservoirs in m5_4~1 gas-bearing formation in the center of Ordos basin [J]. China Offshore Oil and Gas, 2000, 14(1): 38-41.[4] 邹才能, 陶士振, 周慧, 等. 成岩相的形成、分类与定量评价方法[J]. 石油勘探与开发, 2008, 35(5):526-540. [ZOU Caineng, TAO Shizhen, ZHOU Hui, et al. Genesis, classification and evaluation method of diagenetic facies [J]. Petroleum Exploration and Development, 2008, 35(5): 526-540. doi: 10.3321/j.issn:1000-0747.2008.05.002 [5] 赖锦, 王贵文, 王书南, 等. 碎屑岩储层成岩相研究现状及进展[J]. 地球科学进展, 2013, 28(1):39-50. [LAI Jin, WANG Guiwen, WANG Shu’nan, et al. Research status and advances in the diagenetic facies of clastic reservoir [J]. Advances in Earth Science, 2013, 28(1): 39-50. doi: 10.11867/j.issn.1001-8166.2013.01.0039 [6] 李盼, 刘之的, 陈玉明, 等. 测井资料在低孔低渗储集层成岩相识别中的应用综述[J]. 地球物理学进展, 2017, 32(1):183-190. [LI Pan, LIU Zhidi, CHEN Yuming, et al. Summarization of application for identifying diagenetic facies in low porosity and low permeability reservoirs using well-logging information [J]. Progress in Geophysics, 2017, 32(1): 183-190. doi: 10.6038/pg20170125 [7] Lai J, Wang G W, Wang S, et al. Review of diagenetic facies in tight sandstones: Diagenesis, diagenetic minerals, and prediction via well logs [J]. Earth-Science Reviews, 2018, 185: 234-258. doi: 10.1016/j.earscirev.2018.06.009
[8] 张响响, 邹才能, 朱如凯, 等. 川中地区上三叠统须家河组储层成岩相[J]. 石油学报, 2011, 32(2):257-264. [ZHANG Xiangxiang, ZOU Caineng, ZHU Rukai, et al. Reservoir diagenetic facies of the Upper Triassic Xujiahe Formation in the central Sichuan Basin [J]. Acta Petrolei Sinica, 2011, 32(2): 257-264. doi: 10.7623/syxb201102010 [9] 高辉, 孙卫. 鄂尔多斯盆地合水地区长8储层成岩作用与有利成岩相带[J]. 吉林大学学报: 地球科学版, 2010, 40(3):542-548. [GAO Hui, SUN Wei. Diagenesis and favorable diagenetic facies of Chang 8 reservoir in Heshui Area, Ordos Basin [J]. Journal of Jilin University: Earth Science Edition, 2010, 40(3): 542-548. [10] 杨威, 魏国齐, 金惠, 等. 碳酸盐岩成岩相研究方法及其应用——以扬子地块北缘飞仙关组鲡滩储层为例[J]. 岩石学报, 2011, 27(3):749-756. [YANG Wei, WEI Guoqi, JIN Hui, et al. Methods for diagenetic facies research on carbonate rocks and its application: Example from oolitic beach reservoir of the Febdanguan Formation in the northern margin of Yangtze block [J]. Acta Petrologica Sinica, 2011, 27(3): 749-756. [11] 李珊珊, 彭松, 陶倩倩, 等. 涠西南凹陷南斜坡晚始新世扇三角洲复杂储层预测关键技术及油气地质意义[J]. 海洋地质与第四纪地质, 2017, 37(2):160-168. [LI Shanshan, PENG Song, TAO Qianqian, et al. Key techniques for prediction of late Eocene fan deltaic reservoir complex on southern slope of Weixinan depression and their petroleum geological significance [J]. Marine Geology & Quaternary Geology, 2017, 37(2): 160-168. [12] 张辉, 姜平, 蔡军, 等. 涠西南凹陷流沙港组一段储层物性影响因素研究[J]. 海洋石油, 2013, 33(2):8-14. [ZHANG Hui, JIANG Ping, CAI Jun, et al. Control factors on physical property of Liu-1 Member of Liushagang Fm in Weixinan sag, Beibuwan basin [J]. Offshore Oil, 2013, 33(2): 8-14. doi: 10.3969/j.issn.1008-2336.2013.02.008 [13] 吴仕玖, 尤丽, 招湛杰, 等. 涠西南凹陷斜阳斜坡带流三段储层特征与有利储层分布[J]. 东北石油大学学报, 2017, 41(4):24-31, 122. [WU Shijiu, YOU Li, ZHAO Zhanjie, et al. Reservoir characteristics and favorable reservoir distribution of member three of Liushagang Formation of Xieyang slope in Weixinan Sag [J]. Journal of Northeast Petroleum University, 2017, 41(4): 24-31, 122. doi: 10.3969/j.issn.2095-4107.2017.04.003 [14] 高凌, 张明伟, 严恒, 等. 涠西南凹陷涠洲10-A油田及围区流三段储层特征及控制因素[J]. 中国矿业, 2017, 26(9):156-163, 168. [GAO Ling, ZHANG Mingwei, YAN Heng, et al. Reservoir characteristics and control factors of member 3 of the Liushagang formation, WZ10-A oilfield and surrounding areas, Weixinan sag [J]. China Mining Magazine, 2017, 26(9): 156-163, 168. [15] 姚光庆, 张建光, 姜平, 等. 涠西南凹陷11-7构造区流沙港组中深层有效储层下限厘定[J]. 地学前缘, 2012, 19(2):102-109. [YAO Guangqing, ZHANG Jianguang, JIANG Ping, et al. The physical property lower limit of medium-deep effective clastic reservoirs in Liushagang formation, 11-7 district of Weixinan depression [J]. Earth Science Frontiers, 2012, 19(2): 102-109. [16] 刘景环, 王瑞丽, 尤丽, 等. 涠西南凹陷流沙港组成岩相与有效储层研究[J]. 西南石油大学学报: 自然科学版, 2012, 34(6):175-184. [LIU Jinghuan, WANG Ruili, You Li, et al. Study on the diagenetic facies and effective clastic reservoirs in Liushagang Formation of Weixinan Sag [J]. Journal of Southwest Petroleum University: Science & Technology Edition, 2012, 34(6): 175-184. [17] 郭飞飞, 王韶华, 孙建峰, 等. 北部湾盆地涠西南凹陷油气成藏条件分析[J]. 海洋地质与第四纪地质, 2009, 29(3):93-98. [GUO Feifei, WANG Shaohua, SUN Jianfeng, et al. Analysis on the conditions of petroleum accumulation in Weixinan sag, Beibuwan basin [J]. Marine Geology & Quaternary Geology, 2009, 29(3): 93-98. [18] 李茂, 朱绍鹏, 邹明生, 等. 涠西南凹陷复杂断块和隐蔽油气藏滚动勘探开发实践[J]. 中国海上油气, 2015, 27(4):73-79. [LI Mao, ZHU Shaopeng, ZOU Mingsheng, et al. Progressive exploration and development of complex fault-block and subtle reservoirs in Weixinan sag [J]. China Offshore Oil and Gas, 2015, 27(4): 73-79. [19] 程启贵, 张磊, 郑海妮, 等. 基于成岩作用定量表征的成岩储集相分类及意义——以鄂尔多斯盆地王窑-杏河-侯市地区延长组长6油层组特低渗储层为例[J]. 石油天然气学报: 江汉石油学院学报, 2010, 32(5):60-65. [CHEN Qigui, ZHANG Lei, ZHANG Haini, et al. Classification and significance of diagenesis reservoir facies based on the quantitative characterization of diagenesis——By taking Chang-6 Extra-low permeability reservoirs of Yanchang formation of Triassic system in Wangyao-Xinghe-Houshi area of Ordos basin for example [J]. Journal of Oil and Gas Technology: JPI, 2010, 32(5): 60-65. [20] 史超群, 王云龙, 秦智, 等. 松辽盆地大安油田下白垩统泉头组四段特低渗-超低渗储集层成岩作用定量研究[J]. 古地理学报, 2016, 18(2):251-264. [SHI Chaoqun, WANG Yunlong, QIN Zhi, et al. Quantitative study on diagenesis in reservoirs with extra-low to ultra-low permeability in the Member 4 of Lower Cretaceous Quantou formation in Da’an Oilfield, Songliao basin [J]. Journal of Palaeogeography, 2016, 18(2): 251-264. doi: 10.7605/gdlxb.2016.02.019 [21] Scherer M. Parameters influencing porosity in sandstones: A model for sandstone porosity prediction [J]. AAPG Bulletin, 1987, 71(5): 485-491.
[22] Beard D C, Weyl P K. Influence of texture on porosity and permeability of unconsolidated sand [J]. AAPG Bulletin, 1973, 57(2): 349-369.
[23] Chai Y, Wang G W, Lai J. Diagenetic facies characteristics and logging recognition of tight sandstone reservoir in Xu-2 section of Anyue Area, Sichuan [J]. Journal of Earth Sciences and Environment, 2014, 36(3): 38-51.
[24] 赖锦, 王贵文, 王书南, 等. 碎屑岩储层成岩相测井识别方法综述及研究进展[J]. 中南大学学报: 自然科学版, 2013, 44(12):4942-4953. [LAI Jin, WANG Guiwen, WANG Shunan, et al. Overview and research progress in logging recognition method of clastic reservoir diagenetic facies [J]. Journal of Central South University: Science and Technology, 2013, 44(12): 4942-4953. [25] 娄敏, 杨香华, 江平, 等. 西湖凹陷中央背斜带中北部花港组储层成岩相测井识别[J]. 石油地质与工程, 2019, 33(4):6-10. [LOU Min, YANG Xianghua, JIANG Ping, et al. Reservoir diagenetic facies logging identification of Huagang formation in central-northern of the central anticlinal belt of Xihu sag [J]. Petroleum Geology and Engineering, 2019, 33(4): 6-10. doi: 10.3969/j.issn.1673-8217.2019.04.002 [26] 庞国印, 唐俊, 王琪, 等. 利用概率神经网络预测成岩相——以鄂尔多斯盆地合水地区延长组长8段储层为例[J]. 特种油气藏, 2013, 20(2):43-47. [PANG Guoyin, TANG Jun, WANG Qi, et al. Prediction of diagenetic facies with probabilistic neural network-taking member Chang 8 of Heshui Area in Ordos basin as an example [J]. Special Oil & Gas Reservoirs, 2013, 20(2): 43-47. doi: 10.3969/j.issn.1006-6535.2013.02.010
